Brand: MAIWO

Color: Black

Overview:

• Support data access of 4pcs NVMe M.2 SSD
• Chipset: ASM2464PDX
• Support 1:3 offline clone
• Upstream USB C total rate: up to 40Gbps
• NVMe M.2 port rate: up to 16Gbps
• Speed is different from different motherboard, system, SSD, cable, etc.
• Support M.2 SSD:2240,2260,2280,22110
• LED light indicator
• Clone speed for refer:
• Source: 256GB
• Target: 500GB(Seagate 530series PCIe Gen4 SSD)
• Time：4 minutes and 48 seconds

Operating systems supported

Windows / Mac OS/ Linux

Package Contents

12V5A power adapter

70CM Type C to Type C cable

User manual

הפוסט 4 Bays Enclosure for NVMe M.2 SSD הופיע ראשון בNBtech Group

Brand: MAIWO

Color: White & Gold

Overview:

Exclusively Designed for Speed

Up to 32Gbps with PCI Express 3.0 x4, 3200+MB/s read and 1500+MB/s write.M.2 pcie adapter
Support PCIe x4 x8 x16 slot for Windows 7/8/10 & Linux.

Strong Compatibility

Support PCIe x4 x8 x16 card slot for Windows 7/8/10 & Linux, Applicable to sizes 2230 2242 2260 2280 M-Key NVME SSD,
NOT support SATA-based M.2 AHCI SSD (Key B/B+M), please confirm your SSD before.

High-Quality Material

Thickened immersion gold PCB card, gold-plated version is more durable and stable than tin-plated board, especially for
high-speed signal transmission with better continuity and stability.

Stable Quality

M-KEY High-quality with elastic connector makes the contact more stable, intelligent LED indicator, always flashes when
plugged in cartoon, flashes when reading and writing.

Note: If no drives appear in the Device/Disk manage, please go to the SSD’s website and install NVMe driver.

הפוסט M.2 NVMe SSD to PCIe 3.0 X16/X8/X4 Adapter Converter Card הופיע ראשון בNBtech Group

Brand: MAIWO

Color: Silver

Overview:

MAIWO K2024P 4 Bay M.2 NVMe SSD Enclosure

• USB4 Port
• Cooling Fan
• Support 1-to-3 Offline Clone
• 40Gbps High Speed
• Backward Compatible Thunderbolt 4/3

הפוסט 4 Bay M.2 NVMe SSD Enclosure with USB4 Port הופיע ראשון בNBtech Group

Brand: MAIWO

Color: Black

Overview:

• USB3.2 Gen2 Type C to M.2 NVMe/SATA SSD Adapter
• Support M-key NVMe SSD 2230,2242,2260,2280,22110
• Support B+M key SATA M.2 SSD 2230,2242,2260,2280,22110
• Built in type C cable
• USB3.2 GEN2 superspeed up to 10Gbps
• Made of plastic
• Support UASP and TRIM,able to optimizing speed 20%~30% at win8 or above

הפוסט USB3.2 Type C to M.2 NVMe /M.2 SATA SSD Adapter הופיע ראשון בNBtech Group

Brand: MAIWO

Color: Black

Overview:

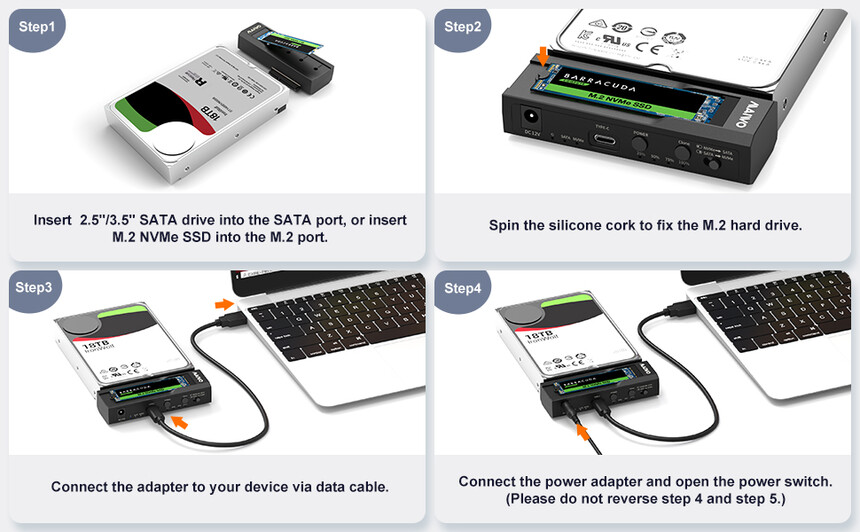

Dual Bay External Hard Drive Enclosure: this HDD/SSD enclsoure supports a M.2 NVMe SSD and
a 2.5/3.5 inch SATA hard drive, best solution for different SSDs/HDDs, one bay is compatible with
M.2 NVMe solid state drive in size 2230/2242/2260/2280,another bay is applicable to 2.5″ or 3.5″
hard disk.

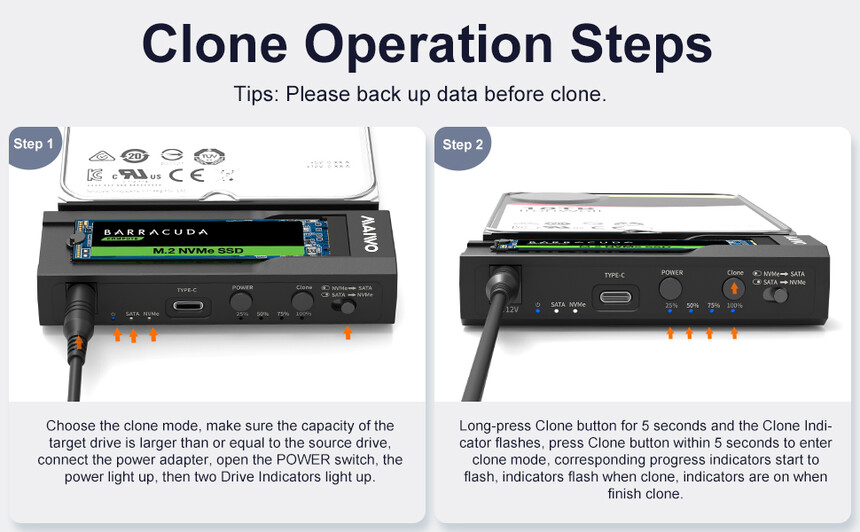

Offline Clone Function: this duplicator supports offline cloning from NVMe to 2.5/3.5 inch SATA or
from 2.5/3.5inch SATA HDD/SSD to M.2 NVMe SSD, easily switch clone mode,no need to connect
any computer.

High Speed Transmission: The m.2 NVMe speed up to 10Gbps, SATA transmission speed up to
6Gbps, support UASP (Windows 8 or above)

Wide Compatibility: this hard drive duplicator supports Windows/Mac OS/Linux, offered with USB A
to C cable ,can work with computer/TV/PS4/router/smartphone (OTG function and USB-C adapter
required) etc.

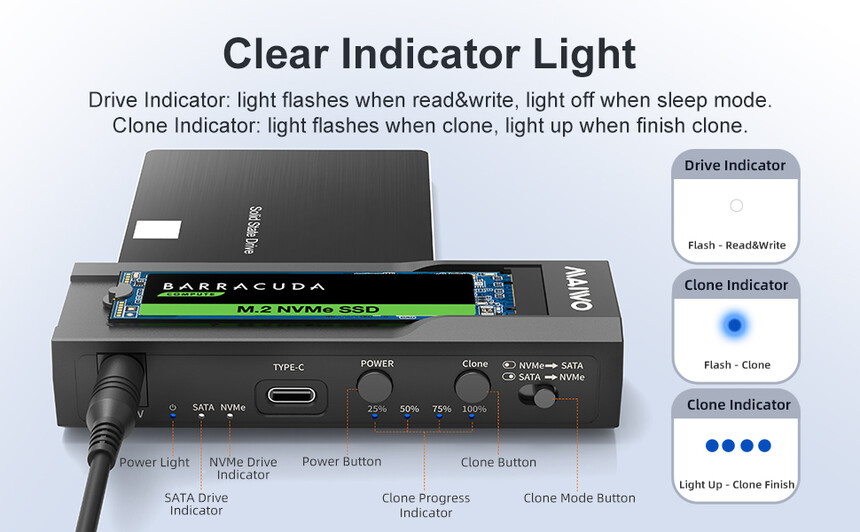

More Features of Hard Drive Enclosure: portable size, auto sleep function, LED indicator,
independent power supply, driver / tool free.

הפוסט USB-C Hard Drive Enclosure Duplicator for 2.5″/3.5″ SATA הופיע ראשון בNBtech Group

Brand: MAIWO

Color: Black

Overview:

USB3.2 GEN 2×1 type-C to PCIe NVME M.2 SSD 1:1 clone duplicator and PM
function.

Compatibility – This dual bay M.2 SSD cloner can simultaneous read and write
M.2 NVME PCIe SSDs in size 2230/2242/2260/2280/22110. Support One-Key
Offline Clone without connecting this dock to PC.

10Gbps Transfer Speed – MAIWO double bay nvme m.2 docking station equips
with ASM2362+ASM2806A chipset, USB3.0 GEN2 output port and Type-C to
Type-C data cable. The transmission speed can reach 10Gbps.

Good Heat Dissipation – There is an aluminum metal cooling mat inside the dock
and the vertical insert design helps dissipate heat quickly and protect the hard
disk better.

Feature – 4TB Capacity / Tool-Free / Plug and Play / Independent 5V 3A Power
Adapter / 10mins Auto Sleep / LED Indicator

Mini Size – Compact and portable: 3.09×3.01×0.75 inch, 0.33lbs. Tool-free, easy to
swap SSDs, very convenience for daily usage.

הפוסט M.2 NVMe Duplicator 2 Bay הופיע ראשון בNBtech Group

Brand: MAIWO

Color: Silver

Overview:

This Dual Bay M.2 Hard Drive Docking Station supports M.2 NVMe/SATA SSDs
(Size 2230/2242/2260/2280/22110) and SD Card/SD Express 7.0/7.1 Read and
Write and Offline Clone.

10Gbps Super Speed – Comes with USB3.1 Gen2 interface and Type-C to Type-C
cable, the Transmission Bandwidth can Reach 10Gbps. Also equips with an
independent 5V 3A Power Adapter, it is so fast to access your profile and increase
your productivity stably.

8TB Capacity – The Dual Bay M.2 Duplicator supports 2TB expansion with each
M.2 slot, supports 4TB expansion with SD Card slot. Max 8TB capacity in total.

Vertical Design & Tool-Free – This M.2 hard drive adapter is vertical designed, it is
easy for you to plug and unplug, and good for drive cooling when it is working. And
there are metal cooling pad inside the hard disk docking station for long time
working without over-heating.

הפוסט M.2 NVMe SATA Duplicator 2 Bay הופיע ראשון בNBtech Group

Brand: MAIWO

Color: Black

Overview:

Supports M.2 NVMe SSD in size 2280 2260 2242 2230. Support connect it to the PC to read and
write 4 disks at the same time, clone and copy in two groups.

One-Key Offline Clone – No need to connect the 4 Bay Docking Station to PC, just connect it to the
power supply and long press the clone button, then you can back up your important data. Support
group A and B clone at the same time and support system disk clone.

Good Heat Dissipation- It is made of metal aluminum alloy and vertical design with better heat
dissipation performance.

Tool-Free Plug and Play – No additional driver needed, support hot-swapping, convenient and portable,
easy to quickly replace the hard disk, with USB 3.0 to Type-C cable and 12V 3A highly efficient DC power.

10Gbps High Transmission – This M.2 Cloner Dock equips with ASM2362+ASM2806A chipset and
USB 3.1 Gen 2 output interface, the max trasfer speed is 10Gbps. Transfer 1GB file in 1 second, makes
your NVME SSDs run more quickly and stably.

הפוסט M.2 NVME Duplicator 4 Bay הופיע ראשון בNBtech Group

Brand: MAIWO

Color: Silver

Overview:

MAIWO K3016SD Dual Bay M.2 NVMe SATA Docking Station (NOT Support Clone).

• Compatibility – This dual bay M.2 SSD cloner can simultaneous read and write M.2
• Can read SD card up to SD7.1
• Can read & write & clone
• NVME PCIe SSDs in size 2230/2242/2260/2280/22110. Support One-Key OFFLINE
  CLONE and only need to connect this dock to power adapter.
• 10Gbps Super Speed – Comes with JMS581LT chipset, USB3.1 Gen2 interface and
  Type-C to Type-C cable, the Transmission Bandwidth can reach 10Gbps. Also equips
  with an independent 5V 3A Power Adapter, it is so fast to access your profile and
  increase your productivity stably.
• 8TB Capacity – 4TB Hard Drive + 4TB SD Card
• Better Cooling Design – M.2 Hard Disk Docking Station has vertical design, so it’s easy to
  plug or unplug. And there is metal cooling mat inside the enclosure, the vertical design is
  very good for heat dissipation for hard disk during working.
• Excellent Performance – Auto Sleep / Tool-Free / Plug & Play / LED Indicator / Excellent
  Heat Dissipation / 5V 3A Independent Power Adapter / Wide Compatibility / Portable
  Size 78.5×76.5×19.1mm

הפוסט Dual Bay M.2 NVMe SATA Docking Station הופיע ראשון בNBtech Group

Brand: MAIWO

Color: Black

Overview:

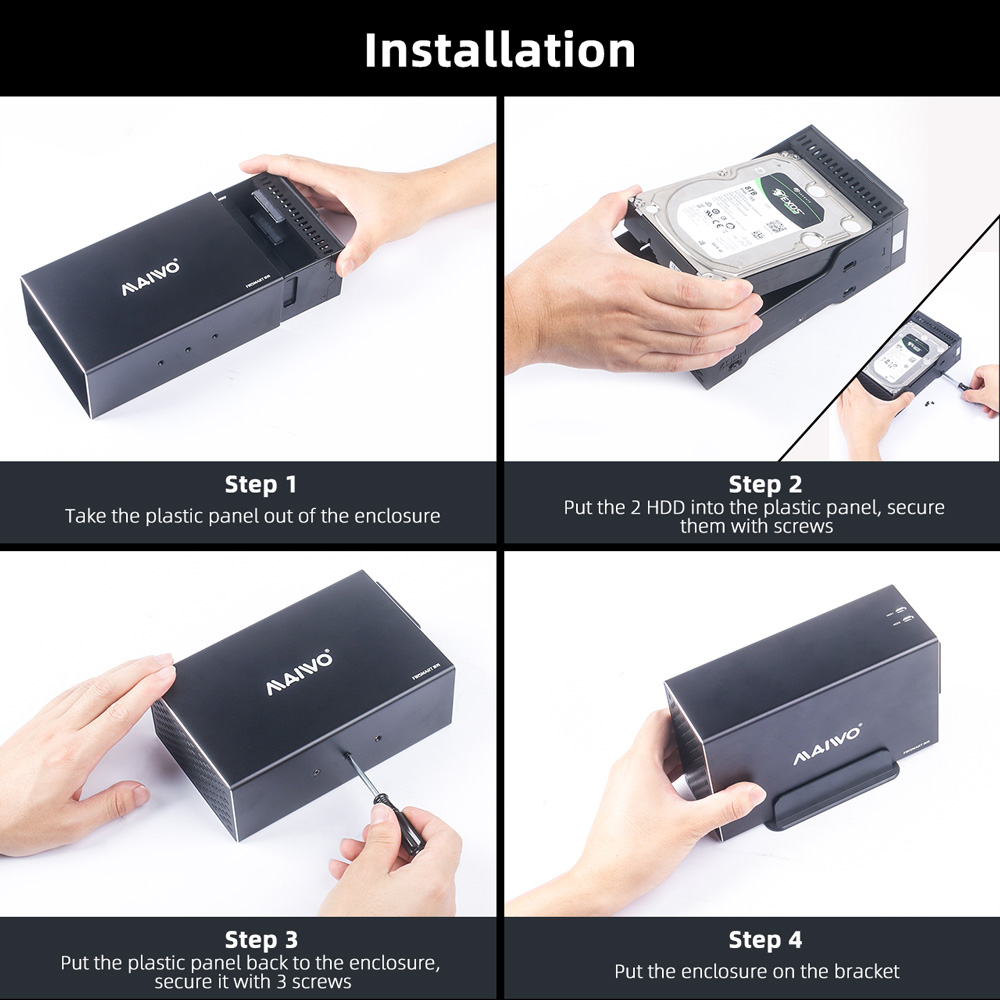

• 2 Bays USB3.2 Gen 1 Aluminum RAID Hard Drive Enclosure for 3.5″ SATA HDD
• Compatible with 2pcs 3.5″ SATA HDD
• Support RAID 0/1/Large/Normal
• Aluminum shell and fan for good heat dissipation
• Support 36TB capacity expansion
• Superspeed up to 5Gbps
• Compatible with Windows / Mac / Linux

MAIWO 3.5″ SATA HDD enclosure is a quick and simple way to expand storage capacity, can copy
and storage more family photos, videos, movies or gaming storage.This unit has perfect heat
dissipation design.

Storage aluminum body,including cooling fan to down heat,panel with dissipate drill can dissipate
heat

Features:

• Four modes to choose,RAID 0,RAID 1,LARGE, NORMAL(PM),meet different users’
  requirements.There are two methods to set modes(manual by switch and software manager)
• Large capacity to expand, can support 18TB one drive and 36TB two drives
• Stable external power adapter supply
• Compatible for Windows / Linux / Mac and other Apple desktops or laptops

הפוסט 2 Bays USB3.2 RAID Enclosure for 3.5″ SATA HDD הופיע ראשון בNBtech Group
